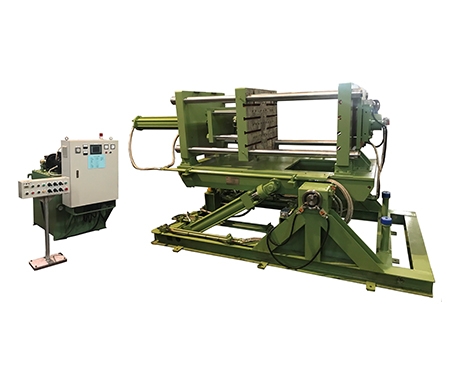

CT-GX200

CT-GX200
Product No : CT-GX200
Inquiry
  • Die Platen Dimension：1000 x 800 mm
  • Tie Bar Spacing：810 x 510 mm
  • Die Thickness：300-600 mm
    (At 600 mm, there are still have 600 mm stroke can be opened)
  • Die Stroke：900 mm
  • Vertical/Horizontal：0°~90°
  • Die-opening/Die-closing：
    • Ascending to await die-opening
    • Descending to await die-opening
    • Ascending and die-opening
  • Core：
    • Core (in) after die-closing and core (out) before die-opening
    • Core (in) after die-closing and die-opening during the process of core (out) together with opening the die to withdraw finished products
  • Suitable Materials for Metal: Aluminum
  • Smart & High Tech：Servo motor driven and encoder controlled.
  • H.M.I: Touch panel, User-friendly operation interface, Operator can set procedure own and lean angle.
  • Unlocking settings：Provide customized services: parameter modification permission and password protection.
  • Strong Machine Body:：Stronger structural strength & longer lifespan.
DescriptionMain ItemUnitType CT-GX200
Clamping Force Ton 200 (No Crank)
Die Platen Dimension mm 1000x 800
Tie Bar Spacing mm 810x 510
Tie Bar Diameter mm ψ75
Die Thickness mm 300-600
(At 600 mm, there are still have 600 mm stroke can be opened)
Servo motor - D4-092L-H13F-M15F-Q040
Die Stroke mm 900
Machine relation Machine Dimension
(L x W x H)		 mm 4150 x 1740 x 1860
(In Vertical：3779)
Machine Weight Ton 5.6
