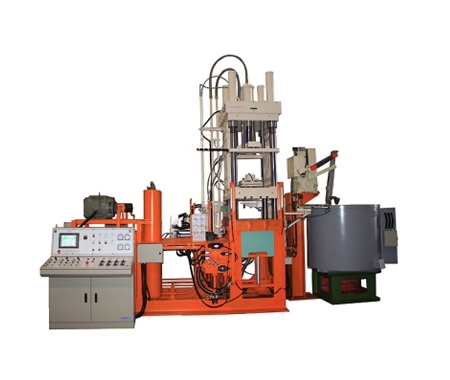

CT-350

CT-350
Product No : CT-350
Description
  • Die Locking Force: 350 Ton
  • Die Thickness: 280~640 mm
  • Tie Bar Spacing: 590 x 590 mm
  • Max of Casting Material: 3.0 kgs
  • Suitable Materials for Metal: Aluminum
Inquiry
Specification
DescriptionMain ItemUnitCT-350
Die Locking Force Ton 350
Die Platen Dimension mm 900 x 900
Tie Bar Spacing mm 590 x 590
Tie Bar Dimension mm ∮110 x 2750L
Die Thickness mm 280~640
Die Stroke mm 320
Cylinder:
Injection / Squeeze		 mm ∮150/∮250
Shot Force:
Injection / Squeeze		 Ton 25 / 68
Plunger Stroke mm 280
Motor HP 30
Plunger Diameter mm 90
Max of Casting Material kg 3
Automatic system Automatic Extractor
Gripping Diameter		 mm Option
∮45~∮70
Automatic Extractor
Gripping Diameter		 -
kg		 Option
0.4 - 3.6 kg
Automatic Sprayer - Option
Machine relation Machine Dimension
(L x W x H)		 mm 3700x1600x3800
Machine Weight Ton 9.2 Ton
