CT-200

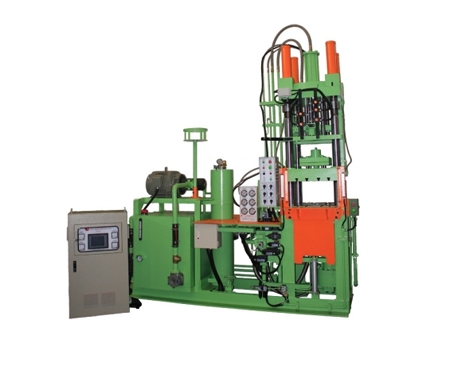

CT-200 Cold Chamber Die Casting Machine for Brass
Product No : CT-200
Description

Vertical Cold Camber Diecasting Machine for Brass

  • Die Locking Force: 200 Ton
  • Die Thickness: 180~450 mm
  • Tie Bar Spacing: 475 x 475 mm
  • Max of Casting Material: 2.5 kgs
  • Suitable Materials for Metal: Brass, Aluminum
Inquiry
Specification
DescriptionMain ItemUnitCT-200
Die Locking Force Ton 200
Die Platen Dimension mm 740 x 740
Tie Bar Spacing mm 475 x 475
Tie Bar Dimension mm ∮95 x 2100L
Die Thickness mm 180~450
Die Stroke mm 255
Cylinder:
Injection / Squeeze		 mm ∮150 /∮230
Shot Force:
Injection / Squeeze		 Ton 25 / 58
Plunger Stroke mm 210
Motor HP 25
Plunger Diameter mm 80
Max of Casting Material kg 2.5
Automatic system Automatic Extractor
Gripping Diameter		 mm Option
∮45~∮70
Automatic Extractor
Gripping Diameter		 -
kg		 Option
0.4 - 3.6 kg
Automatic Sprayer - Option
Machine relation Machine Dimension
(L x W x H)		 mm 3100x1250x3400
Machine Weight Ton 6 Ton
