Vertical Brass Casting Machine

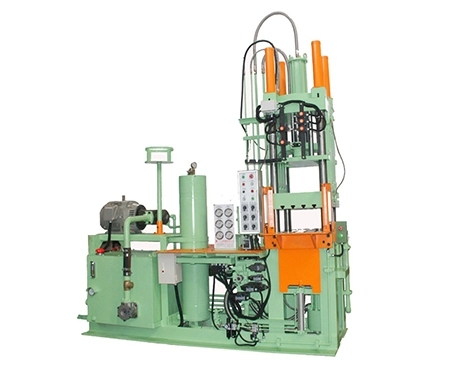

CT-150 Vertical Brass Casting Machine
Product No : CT-150
Description
  • Die Locking Force: 150 Ton
  • Die Thickness: 120~360 mm
  • Tie Bar Spacing: 400 x 400 mm
  • Max of Casting Material: 2.0 kgs
  • Suitable Materials for Metal: Brass, Aluminum
Inquiry
Specification

DescriptionMain ItemUnitCT-150
Die Locking Force Ton 150
Die Platen Dimension mm 610 x 610
Tie Bar Spacing mm 400 x 400
Tie Bar Dimension mm ∮75 x 1720L
Die Thickness mm 120~360
Die Stroke mm 245
Cylinder:
Injection / Squeeze		 mm ∮140 /∮200
Shot Force:
Injection / Squeeze		 Ton 21 / 44
Plunger Stroke mm 165
Motor HP 20
Plunger Diameter mm 70
Max of Casting Material kg 2
Automatic system Automatic Extractor
Gripping Diameter		 mm Option
∮45~∮70
Automatic Extractor
Gripping Diameter		 -
kg		 Option
0.4 - 3.6 kg
Automatic Sprayer - Option
Machine relation Machine Dimension
(L x W x H)		 mm 2900x1200x3150
Machine Weight Ton 4.8 Ton
